Expression Pedals

The time has come to replace the trusty Yamaha FC-7 pedal on our 3 manual rental organ with some real organ expression pedals.
The pedals I’m using have a cast almuminium footplate and a 10K rotary pot. They are beautifully made. Please contact me if you would like more information.
The FC-7 was mounted on the pedalboard toe rail. This would not be satisfactory for the new pedals as they are much larger and require more support.
The solution was to fabricate a shelf thats sits above the toe-rail.

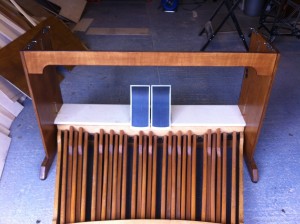

Expression Pedals Mounting

Expression Pedals mounting

The pedals are mounted in their own housing. The housing sits on the shelf. In order to prevent flexing, the shelf needs to be braced.

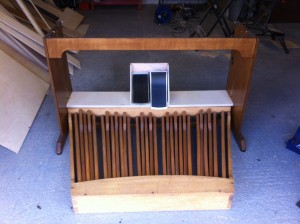

Expression Pedals Housing

Expression Pedals Housing

The knee-board needed substantial modification. The overall appearance is quite pleasing.

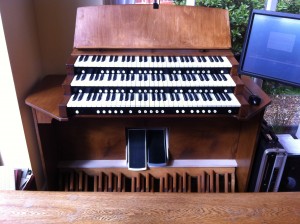

Expression Pedals Fitted

Expression Pedals Fitted

Just the electrics to do.
